SmartBalancer

Field balancing

  • Complete package at a low cost-to-benefit ratio
  • 2 simultaneous measuring channels for static and dynamic field balancing
  • Vector diagram of the unbalance and influence meter for all measuring points
  • Analysis set-up in conformity with DIN ISO 10816-3 built-in
  • Machine diagnosis with FFT
  • Standard overall vibration measurement
  • Laser-optics reference transducer with up to about 2 m measuring distance
  • Direct print-out on a printer or in a PDF file
  • Lithium-ion storage battery for at least 8 hours of operation
  • Data memory on Compact Flash Card

Scope of delivery

1 SmartBalancer measuring instrument
with installed rechargeable battery and operator dialogue in German, English, French, Spanish, Russian, Italian, Swedish, Dutch, Polish, Japanese and Chinese

2 Acceleration transducers with:
- 1 probe
- 2 magnetic retainers for flat surfaces and cylindrical surfaces
2 Connecting cables 5 m long
1 Laser-optics reference transducer, with
- 1 magnetic stand
- reflective tape
- 1 connecting cable 3 m long
1 CD-ROM with operating instructions, machine firmware and utility software for processing the measurements on the PC
1 USB connecting cable to the PC, 1.5 m long
1 adapter for USB flash drive incl. USB flash drive
1 Plug-in power supply and charger with UK and US adapters
1 Hard shell case for measuring instruments and accessories

Options

  • Option 01: 1 additional acceleration transducer with 1 probe, 2 magnetic retainers and 1 connecting cable ca 5 m long
  • Option 02: 1 extension cable for the acceleration transducers, 10 m long
  • Option 03: 1 extension cable for the laser-optics reference transducer, 5 m long
  • Option 04: 1 BNC sensor adapter cable
  • Option 05: 1 printer cable 1,5 m
  • Option 06: 1 set of operating instructions in printed and bound form
  • Option 07: calibrating the SmartBalancer in the frequency range of 5 Hz-5 kHz with a DKD calibrating certificate
  • Option 08: calibrating the SmartBalancer in the extended frequency range of 5 Hz-5 kHz with a DKD calibrating certificate (only in connection with Option 07)
  • Option 09: 1 pocket scale with an accuracy of 0.1 g
  • Option 09: 1 kg balancing kit
  • Option 10: 1 software module for assessing roller bearings (release with password)
  • Option 11: 1 extended utility software for excel reports
Design

Area of Application

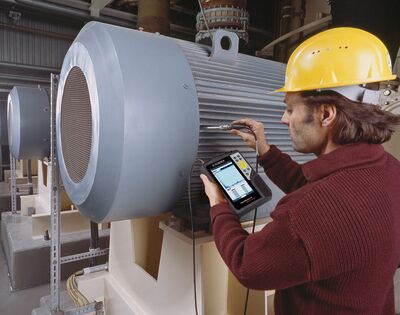

The SmartBalancer is a handy instrument for balancing installed rotors fast, accurately and inexpensively without disassembling machines. You can correct rotors of practically any size or weight in  one and two planes. It makes all of the important diagnostic options such as measuring overall vibrations, tracking analysis and FFT frequency analysis available. Its comprehensive equipment covers most of the other vibration measuring functions, making it a high-performance tool for machine diagnosis.
An optional module for roller bearing assessment further extends the application range of the SmartBalancer: The instrument is performing envelope spectrum analysis to detect periodic impacts caused by roller bearing damage and gearing damage. This analysis is based on the demodulation of amplitude modulated vibration signals. You can therefore make your plans in good time and institute the correct measures at reasonable cost. This extra function is easily released with a password without requiring additional installation.

Design and Function

  • This battery-operated machine has a complete package in its basic equipment with all of the accessories needed for 2-channel balancing. Its scope of delivery includes two piezoelectric acceleration transducers with magnetic retainers for smooth and curved surfaces and a probe. The laser-optics reference pick-up has a large measuring distance up to about 2 m to allow reliable and convenient work.

  • All of the functions of the SmartBalancer can be operated with one hand via one navigation pad and a couple of function keys. Following the very popular Windows display, the SmartBalancer works with easily comprehensible pictograms/icons and a simple file structure. Its large and illuminated colour display and 4 colour LEDs always provide clear information on the machine’s present operating state.
You can save all of your findings together with a description of the machine, the measuring point and date and time right in the SmartBalancer. You can download screenshots or measuring reports or you transmit them to a suitable printer for printing out wherever you are – for saving time and energy.
With our extended utility software as an option it is now furthermore possible to transfer measuring results as csv-file or ms-excel-report directly to your PC.

Technical data
Technical data at a glance  SmartBalancer
No. of measurement channels  2
No. of measurement points  max. 4
Balancing speed  120 - 60.000 min-1
PC connection  RS-232 serial interface with 9.600 - 115.200 baud data transfer rate
Power supply and charging unit  110 V - 240 V / 50 Hz to 60 Hz
Power supply  Re-chargeable Lithium ion battery pack
Battery operating time  8 hours
Working temperature range  -10°C bis +50°C
Measurement functions  Field balancing Measurement of overall vibration Frequency analysis Run-up and run-down curves Vibration versus time Phase measurement
Display  TFT-LCD, backlit Color depth: 18 bit (262144 colors), Resolution: VGA (640 x 480 pixel) w/ 140 ppi Pixel area: 116 x 87 mm
Keyboard  1 navigation pad and 7 keys; Keyboard illumination controlled by ambient light
Weight  1,15 kg (Measuring instrument)
Dimensions  186 x 162 x 52 mm (Measuring instrument)
